Descriptions

Key Features

Compatible with selected XDS bike frames
Model: TOOPRE TL-053
CNC-machined aluminum alloy construction
Lightweight, approx. 15–16g per set
Anodized finish for improved corrosion resistance

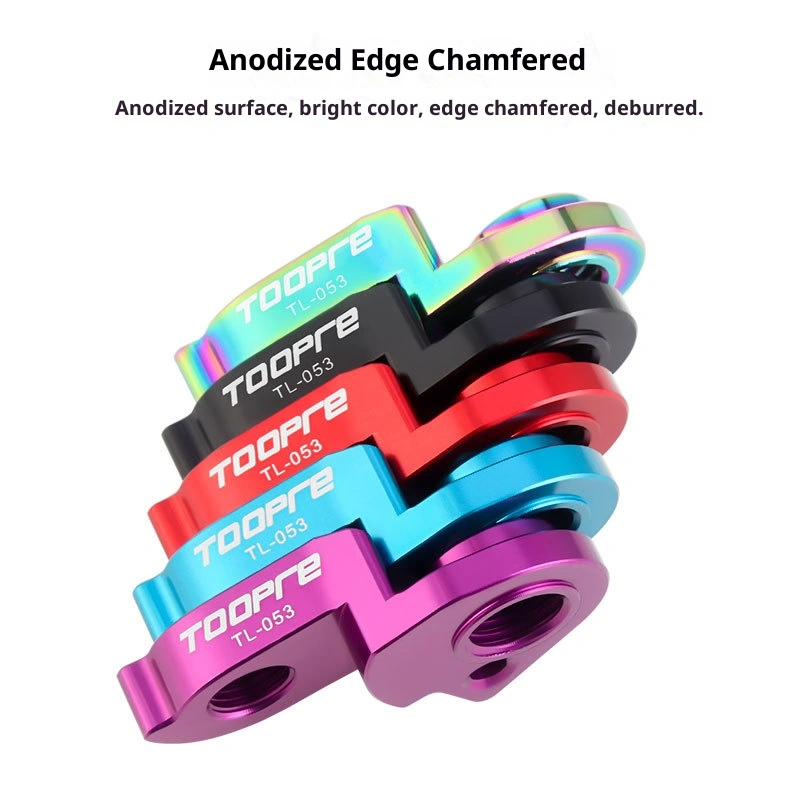

Chamfered and deburred edges for a smooth finish
Laser-engraved TOOPRE logo
Multiple colors available
Includes fixing screw
Suitable for MTB, road, urban, and replacement repair use

Full Product Description

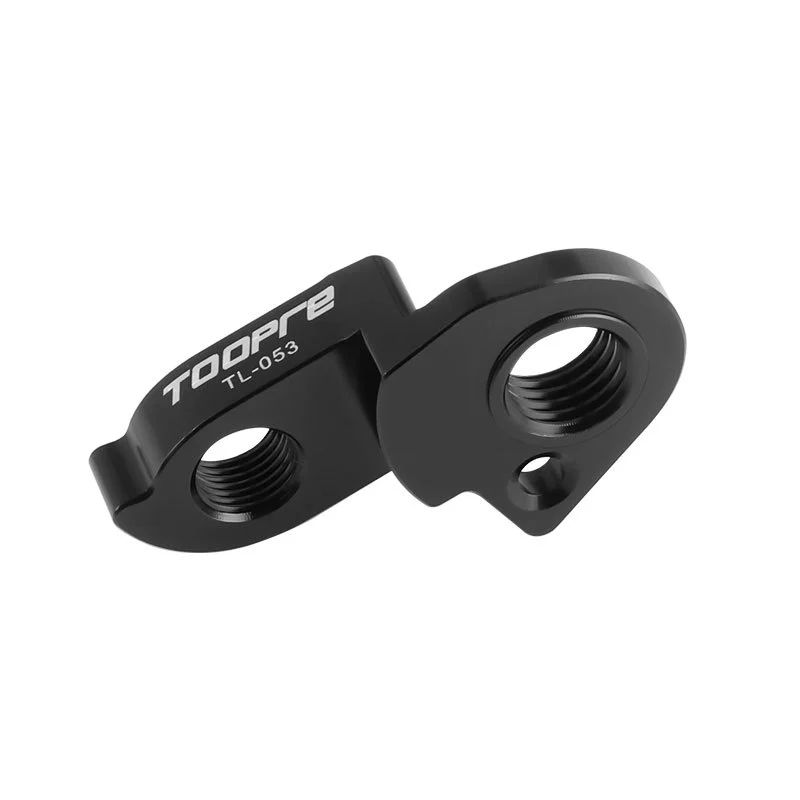

The TOOPRE TL-053 Rear Derailleur Hanger is a precision replacement part designed for compatible XDS bicycle frames. A derailleur hanger is an important protective component that connects the rear derailleur to the bicycle frame. It helps protect the frame and derailleur by absorbing impact during falls, crashes, or accidental knocks.

Made from durable aluminum alloy, this hanger is processed with high-precision CNC one-piece machining for accurate dimensions and reliable installation. The anodized surface provides a bright, attractive finish while helping resist oxidation and corrosion. Smooth chamfered edges and deburred surfaces make the hanger safer to handle and easier to install.

Whether you are replacing a damaged hanger or keeping a spare for maintenance, the TOOPRE TL-053 is a practical and lightweight choice for compatible XDS bikes.

Compatibility

This derailleur hanger is compatible with selected XDS / Xidesheng bicycle models, including:

XDS AD300
XDS AD350
XDS AD500
XDS RS360
XDS RS450
XDS RS450PRO
XDS RS500
XDS RT380
XDS GT300
XDS GT350

Important: Please compare the shape, hole position, thread size, and dimensions with your original derailleur hanger before purchase. Bicycle frame models may vary by production year or region.

Product Specifications

Item	Specification
Brand	TOOPRE
Model	TL-053
Product Name	Bicycle Rear Derailleur Hanger
Material	Aluminum Alloy
Process	CNC Machined
Surface Finish	Anodized
Logo	Laser Engraved
Color Options	Black, Red, Azure Blue, Purple, Colorful
Net Weight	Approx. 15g
Package Weight	Approx. 16g including screw

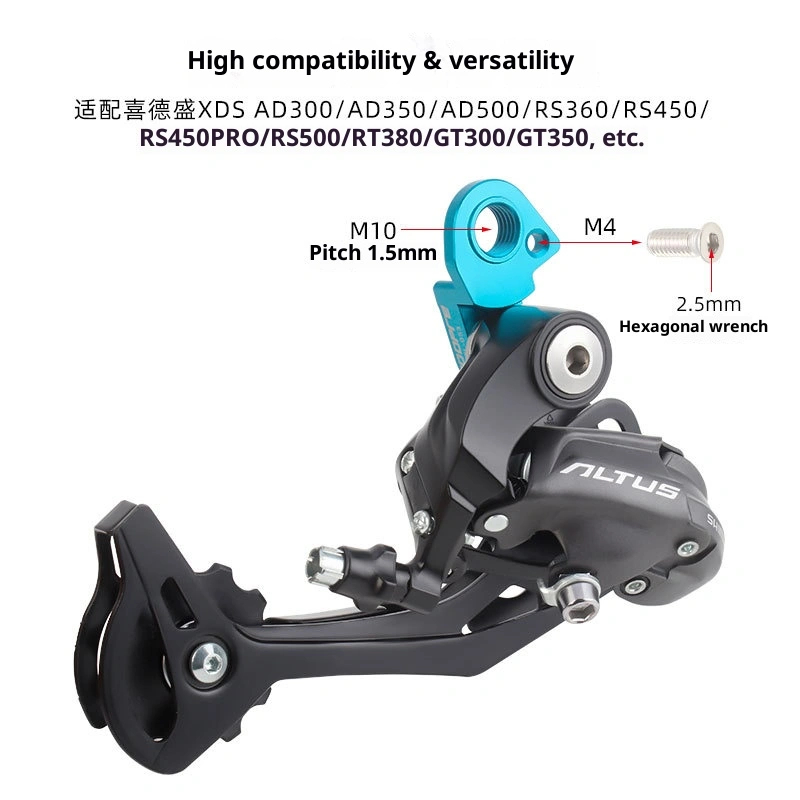

Main Thread	M10, 1.5mm pitch
Small Screw	M4
Overall Length	Approx. 52mm
Thickness Reference	Approx. 4.2mm / 8.4mm
Installation Tool	2.5mm hex wrench for included screw

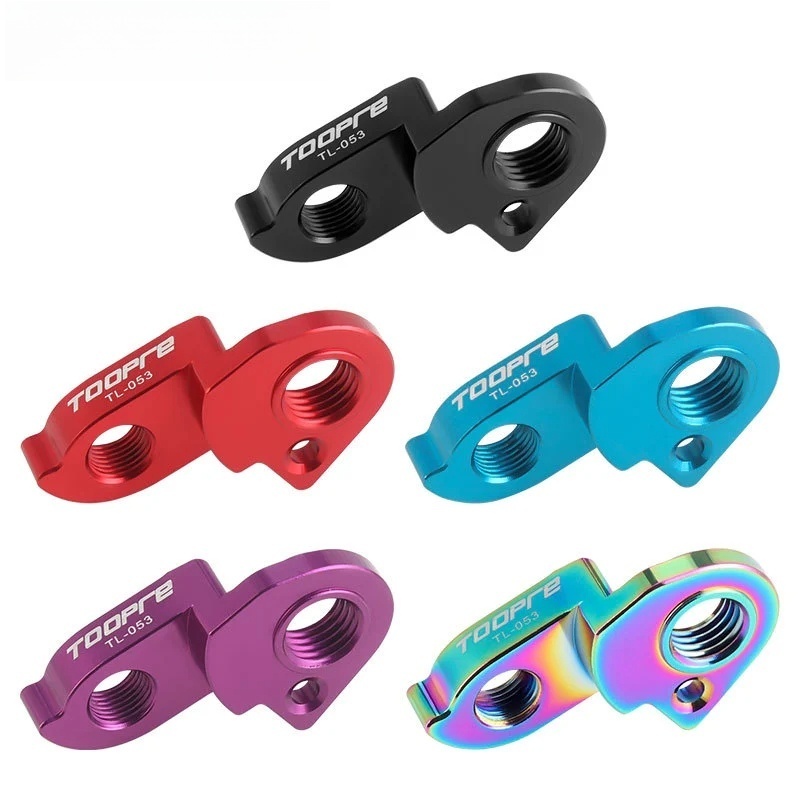

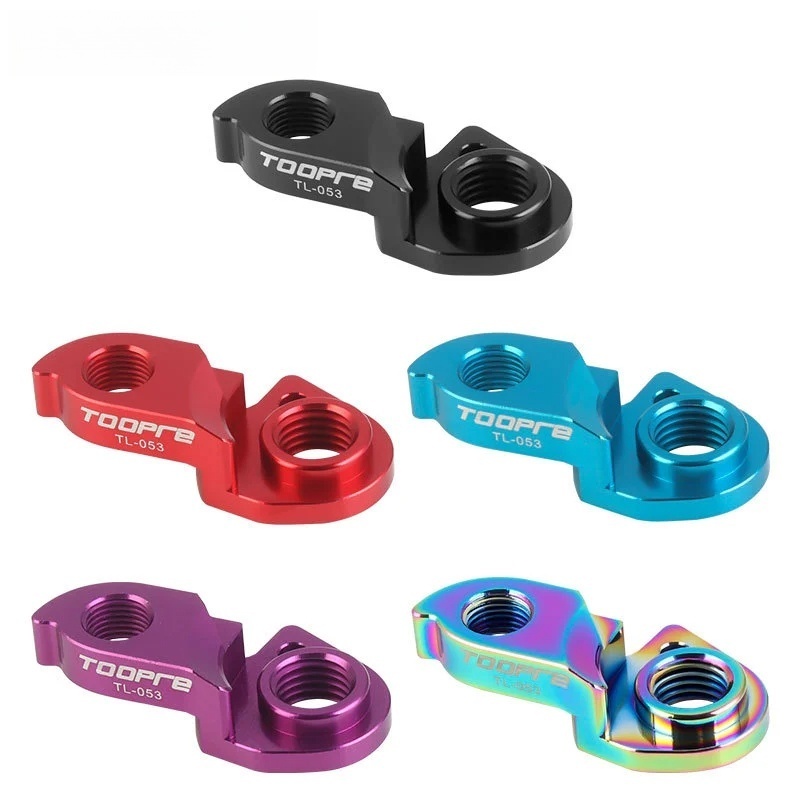

Color Options

Available in five colors:

Black
Red
Azure Blue
Purple
Colorful / Rainbow

The anodized finish gives the hanger a clean and stylish appearance while improving surface protection.

Size Reference

Approximate dimensions:

Measurement	Size
Overall Length	52mm
Main Thread	M10
Thread Pitch	1.5mm
Secondary Thread	M9
Small Fixing Screw	M4
Thickness	4.2mm / 8.4mm
Height Reference	16.5mm

Measurements are taken manually. Slight differences may occur due to measuring tools and methods.

Installation Notes

Remove the damaged or old derailleur hanger from the bike frame.
Clean the mounting area before installation.
Align the TOOPRE TL-053 hanger with the frame dropout.
Install and tighten the included M4 screw using a 2.5mm hex wrench.
Reinstall the rear derailleur onto the hanger.
Check derailleur alignment and adjust shifting if necessary.

For best performance, professional installation or derailleur alignment checking is recommended.

Why Replace a Derailleur Hanger?

A rear derailleur hanger is designed to protect your bike frame and derailleur. If your bike has shifting issues, chain noise, or the derailleur appears misaligned after a crash or impact, the hanger may be bent or damaged.

Replacing the hanger can help restore:
