TOOPRE TL-S27 FSA Crank Cap Tool – 45# Steel 6-Pin Socket for M27 Self-Extracting Crank Arm Bolt Installation & Removal

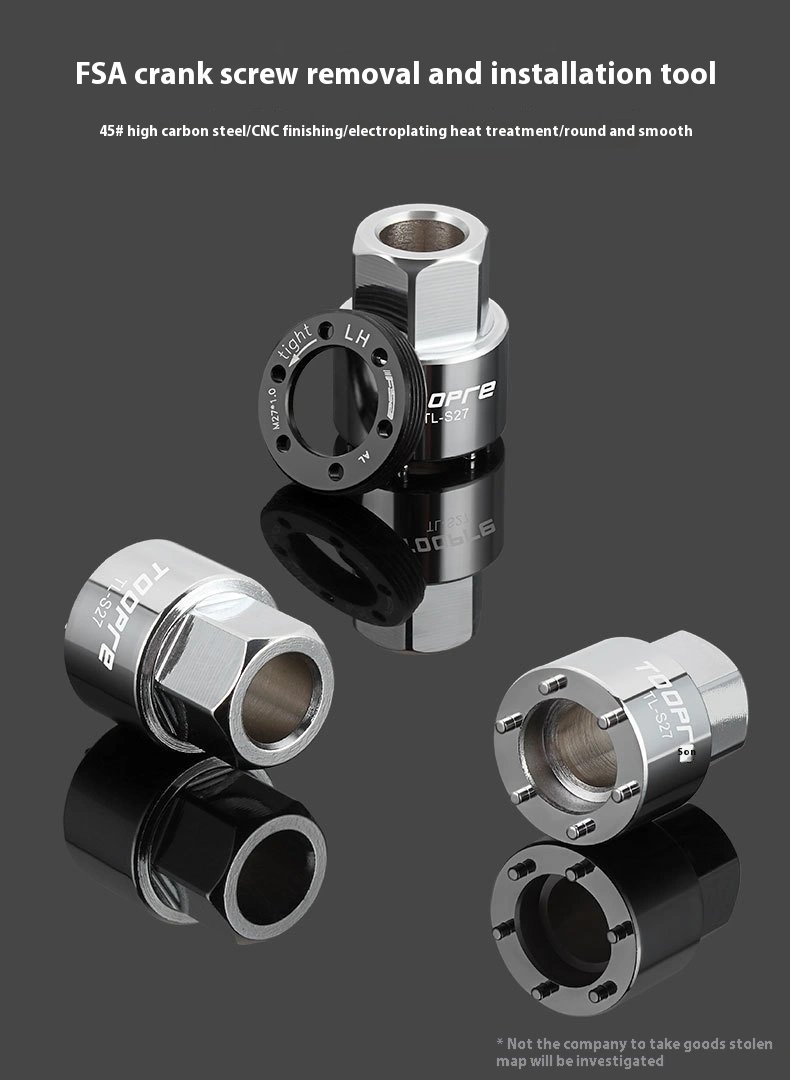

The TOOPRE TL-S27 is a precision 6-pin socket tool purpose-built for installing and removing M27 self-extracting crank arm caps on FSA cranksets. Machined from hardened, electroplated 45# high carbon steel and finished with CNC accuracy, its six pins lock into the crank cap without slipping or stripping, while the 19mm hex drive accepts a standard wrench for solid leverage. Chamfered edges protect your crank arm from scratches, and at just 72g it's compact enough for any tool kit — an essential workshop tool for FSA MegaExo, PowerBox, and K-Force crank owners.
Descriptions
The right tool for FSA crank maintenance.
The TOOPRE TL-S27 is a purpose-built socket tool designed for installing and removing the M27 self-extracting crank arm caps found on FSA cranksets. Machined from hardened 45# high carbon steel with a precision 6-pin engagement face, it locks into the crank cap securely — no slipping, no rounding, no damaged components. Whether you’re swapping crank arms, servicing bearings, or rebuilding your bottom bracket, this tool makes the job clean and effortless.
Key Features

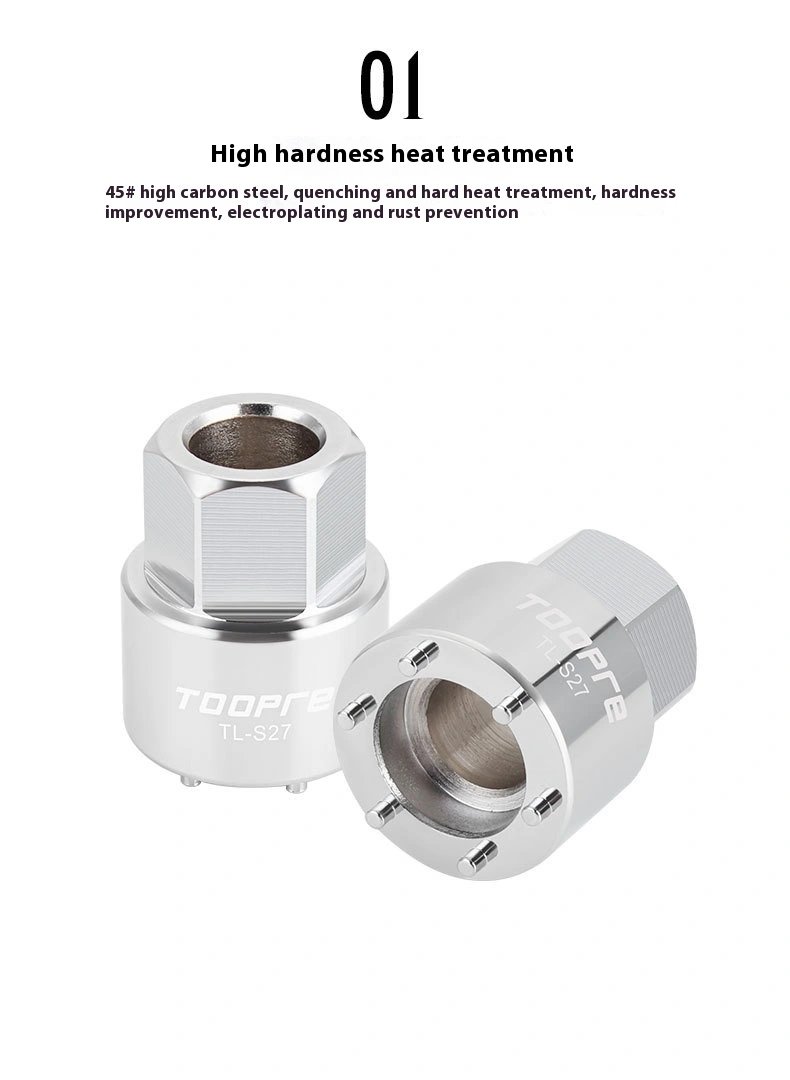

- Hardened 45# High Carbon Steel — Quenched and heat-treated for superior hardness and torque resistance. Electroplated finish provides long-lasting rust and corrosion protection.
- Precision 6-Pin Engagement — Six accurately machined steel pins mesh perfectly with the FSA M27 crank cap holes, distributing torque evenly and preventing cam-out or stripping.

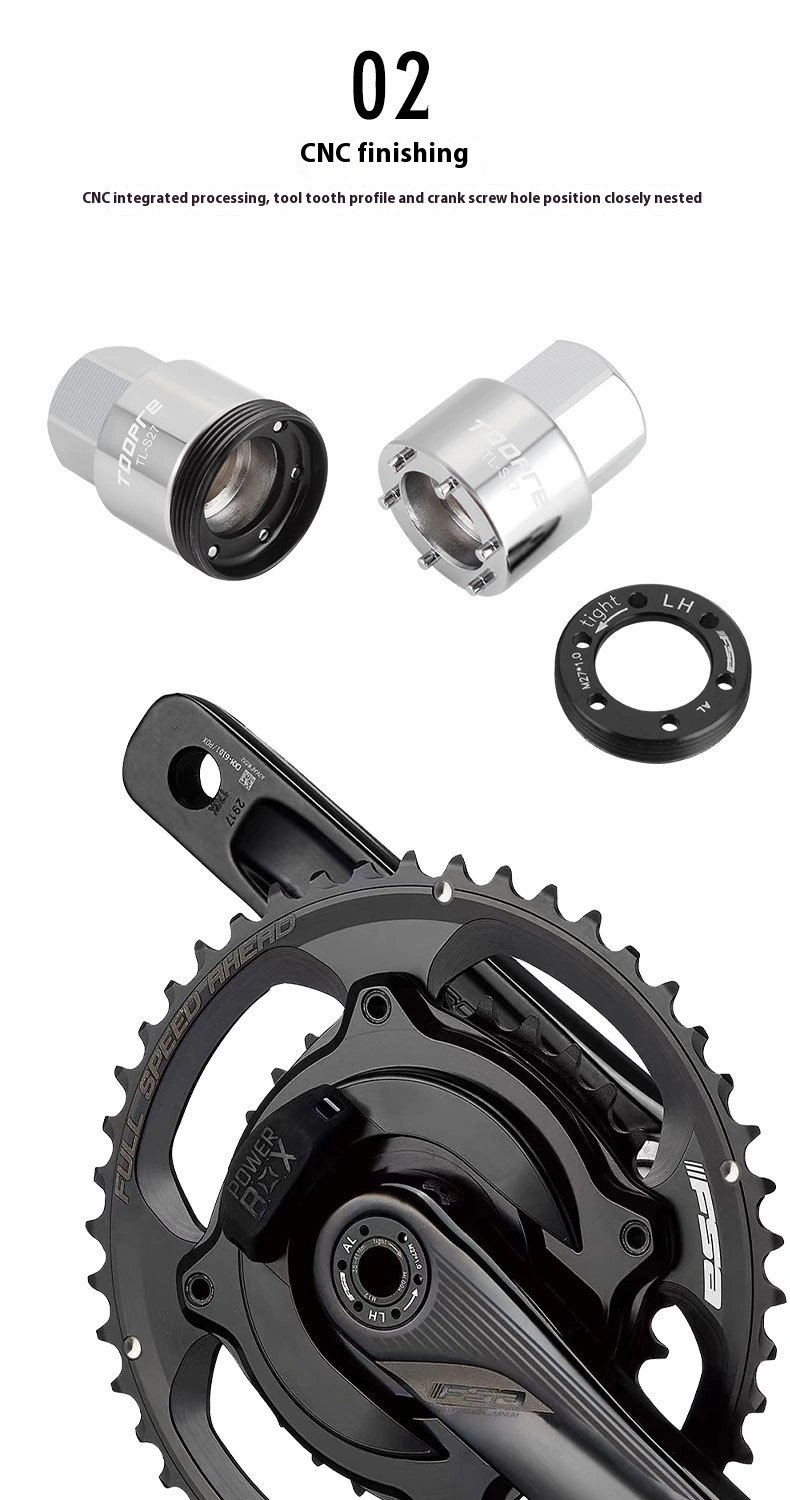

- CNC-Machined Accuracy — Full CNC integrated machining ensures the pin positions and tooth profile align precisely with the crank screw cap every time.

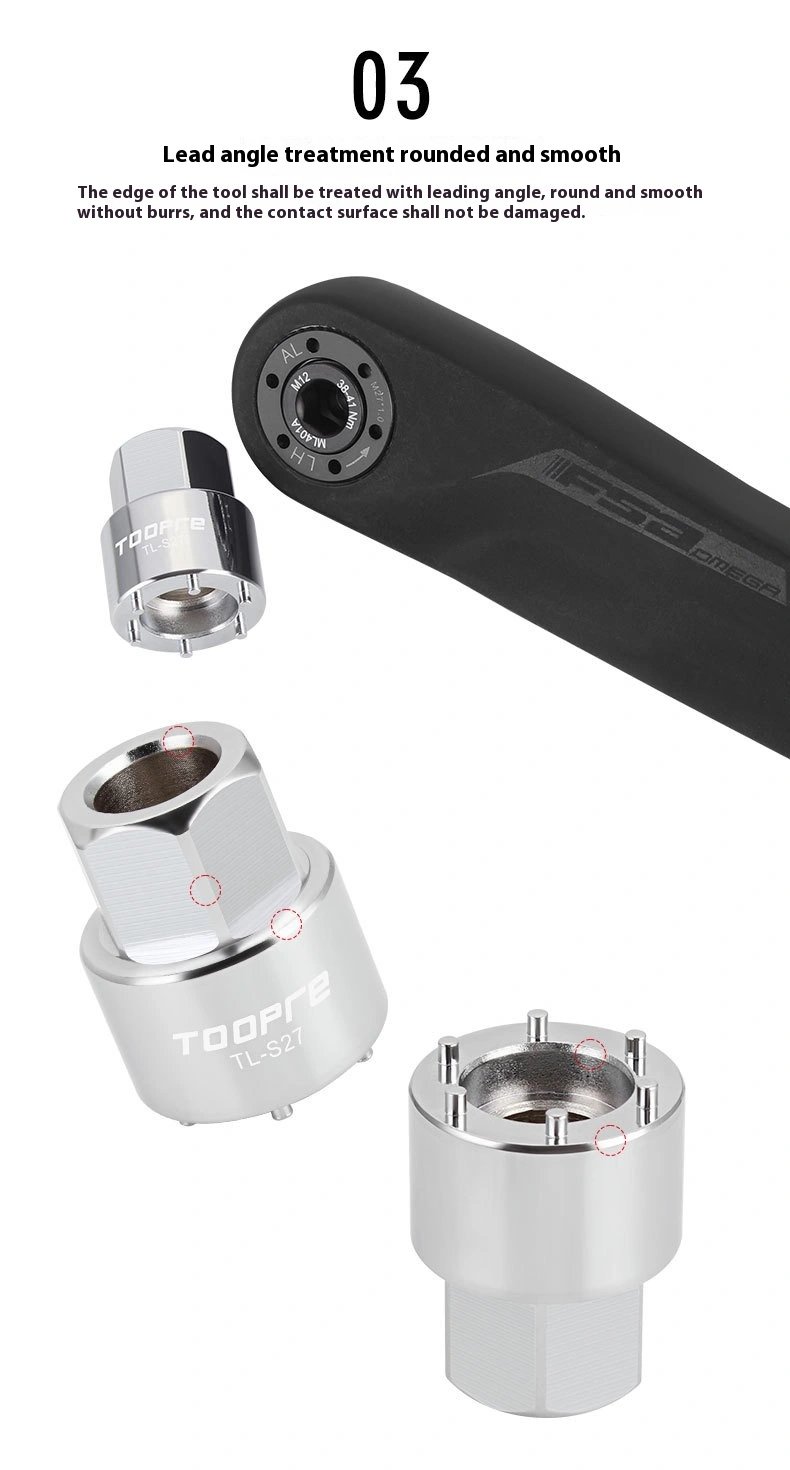

- Chamfered & Deburred Edges — All contact edges are lead-angle treated for a smooth, burr-free finish that won’t scratch or damage your crank arm surface.
- 19mm Hex Drive — The top hex accepts a standard 19mm open-end wrench or adjustable wrench, giving you solid leverage for tightening and loosening.
- Compact & Portable — At just 72g and under 35mm tall, it fits easily in any tool roll or workshop drawer.
How to Use
- Align the six pins on the tool with the corresponding holes on the FSA crank cap.

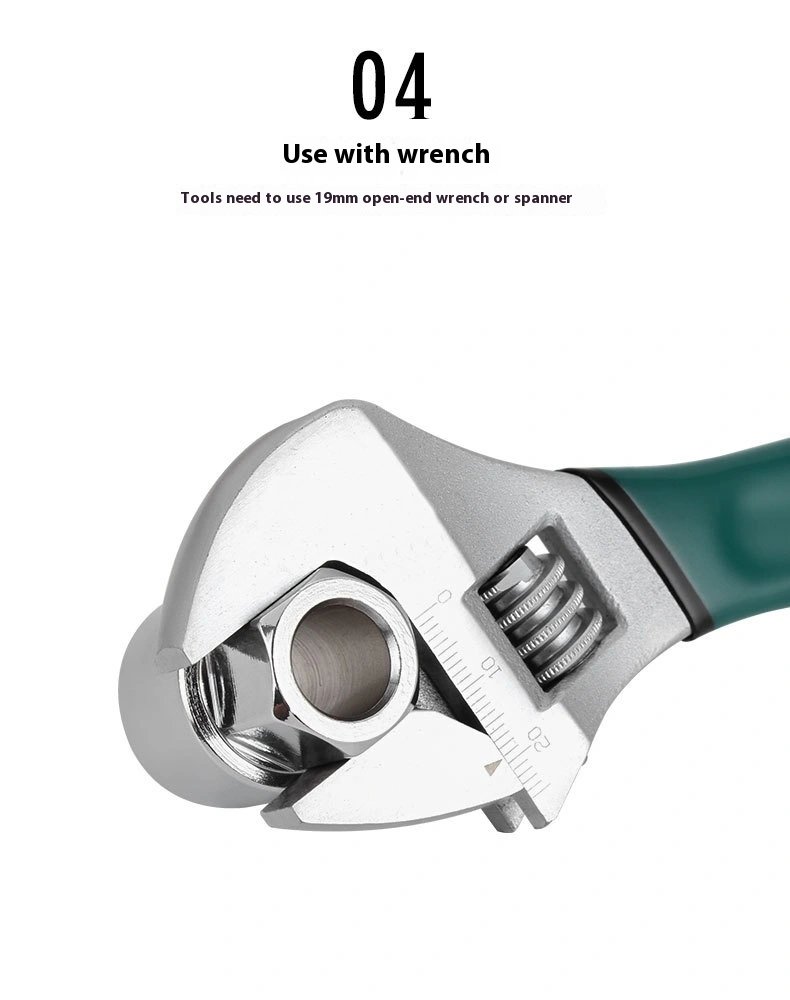

- Fit a 19mm open-end wrench (or adjustable wrench) onto the hex body.
- Turn counterclockwise to remove, or clockwise to install and tighten to the manufacturer’s specified torque (typically 38.4 Nm for FSA M27 caps).
Specifications
| Specification | Details |
|---|---|
| Brand | TOOPRE |
| Model | TL-S27 |
| Material | 45# high carbon steel (quenched & heat-treated, electroplated) |
| Engagement | 6-pin |
| Hex Drive | 19mm |
| Compatible Cap Size | M27 × 1.0 self-extracting crank cap |

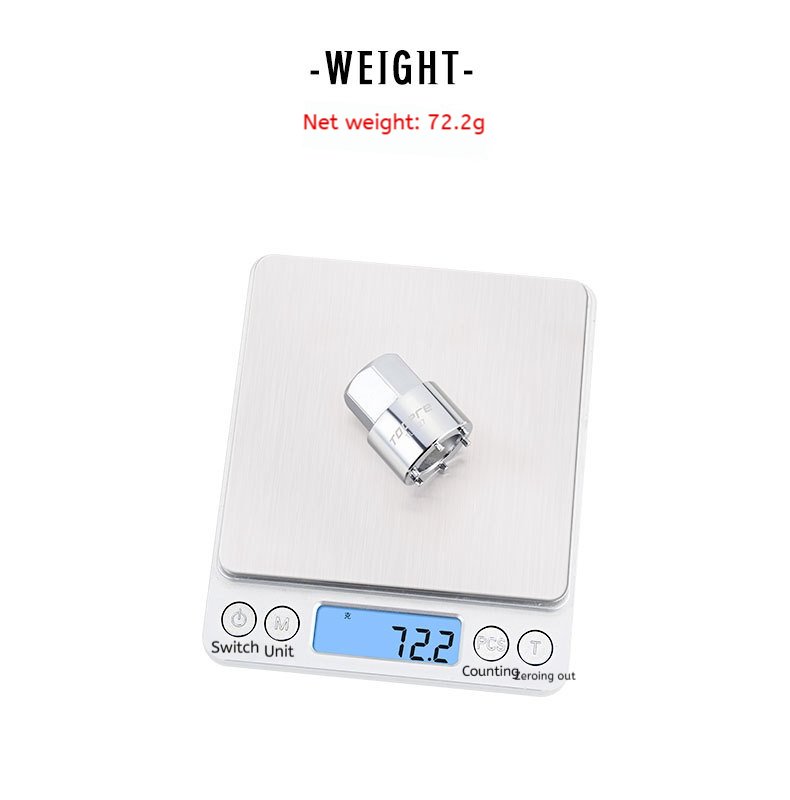

| Net Weight | ~72g |

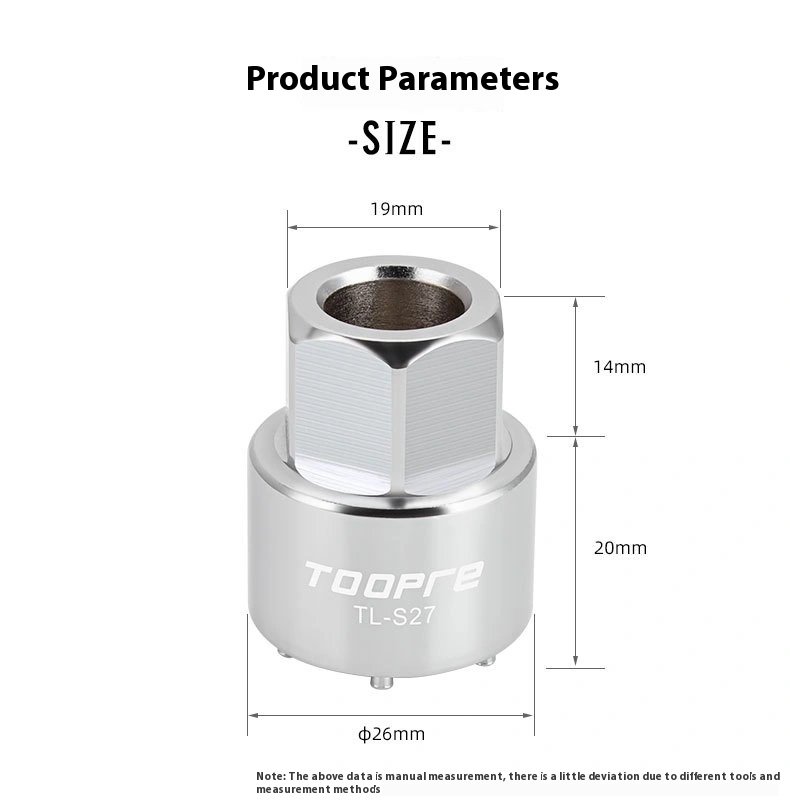

| Dimensions | φ26mm body × 34mm total height (14mm hex + 20mm body) |
| Application | FSA crankset crank arm cap installation & removal |
| Compatibility | FSA MegaExo / PowerBox / K-Force series cranks with M27 self-extracting caps |
Package Includes
- 1 × TOOPRE TL-S27 FSA crank cap tool
Service your FSA crankset with confidence — precision steel, perfect fit, professional results.
