TOOPRE TL-028 Bicycle Truing Stand Centering Gauge Aluminum Alloy Wheel Alignment Calibration Tool

The TOOPRE TL-028 Bicycle Truing Stand Centering Gauge is a practical calibration tool designed for checking and adjusting the center alignment of bicycle wheel truing stands. It helps ensure that the caliper arms of the truing stand are properly centered, improving the accuracy of wheel truing and maintenance work.

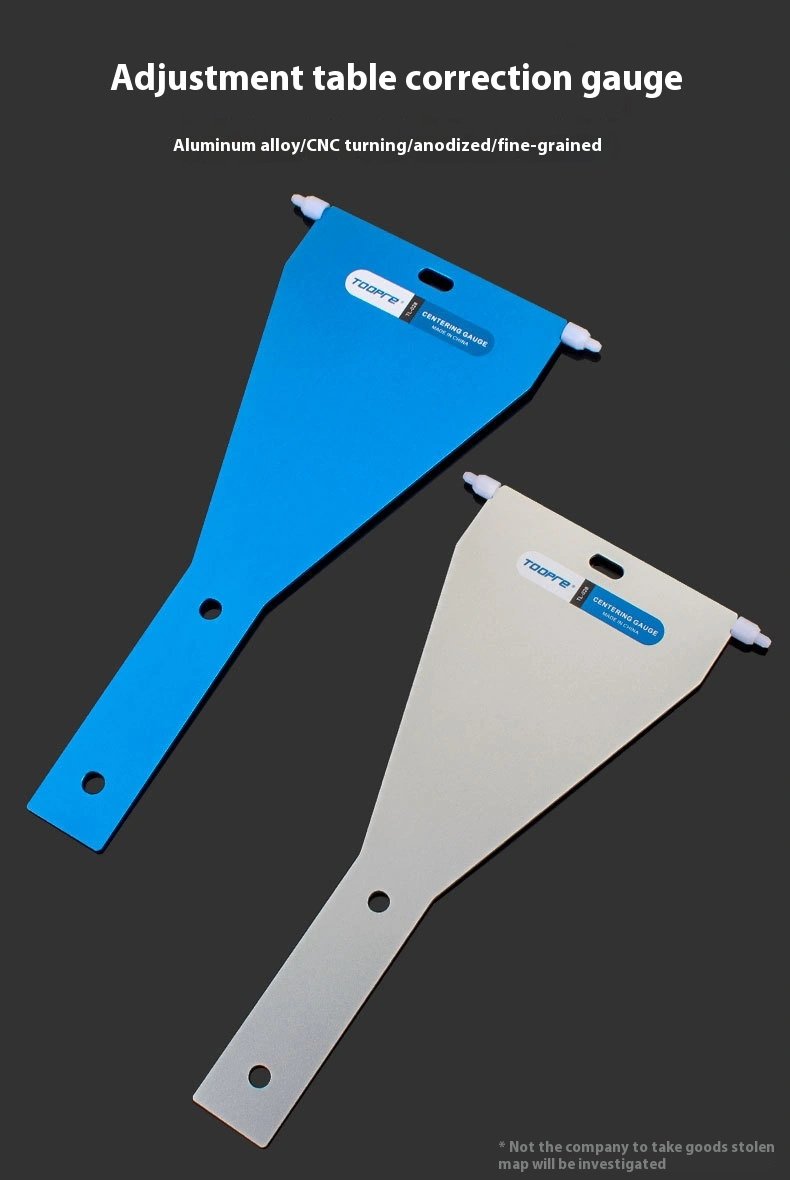

Made from high-strength aluminum alloy, the TL-028 features CNC precision machining, an anodized finish, and a fine frosted surface treatment. The rigid structure provides reliable durability, while the lightweight design makes it easy to handle and store.

This centering gauge is suitable for bicycle repair shops, professional mechanics, wheel builders, and home maintenance users. By using it to calibrate the truing stand before wheel adjustment, users can achieve more accurate wheel centering, spoke tension adjustment, and rim correction results.

Each set includes 1 centering gauge, 1 Chinese/English instruction manual, and 2 axle end caps, providing everything needed for quick and convenient truing stand calibration.

Key Features

• Designed for Truing Stand Calibration
  Helps check and correct the center position of bicycle wheel truing stands.
• Improves Wheel Truing Accuracy
  Ensures the truing stand arms are aligned correctly for more precise wheel adjustment.

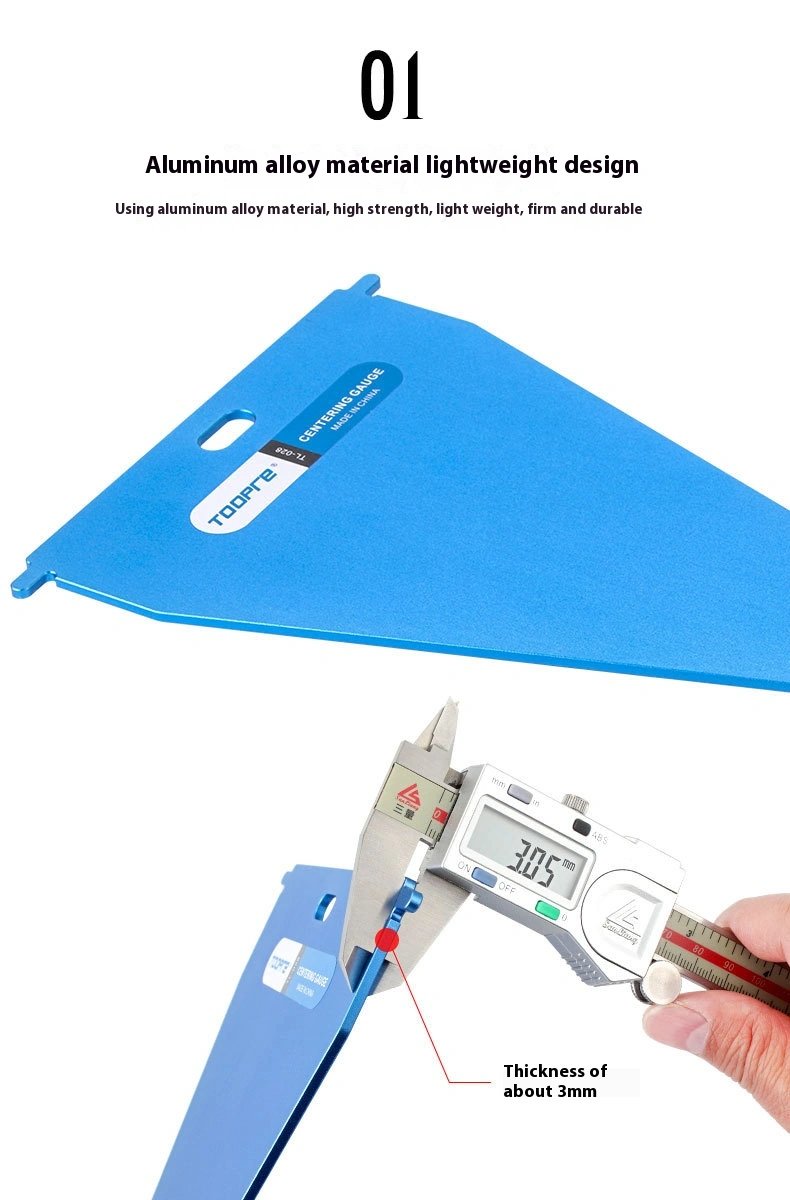

• High-Strength Aluminum Alloy
  Durable, rigid, and resistant to deformation during use.
• CNC Precision Machined
  Accurate shaping and smooth edges for reliable calibration performance.

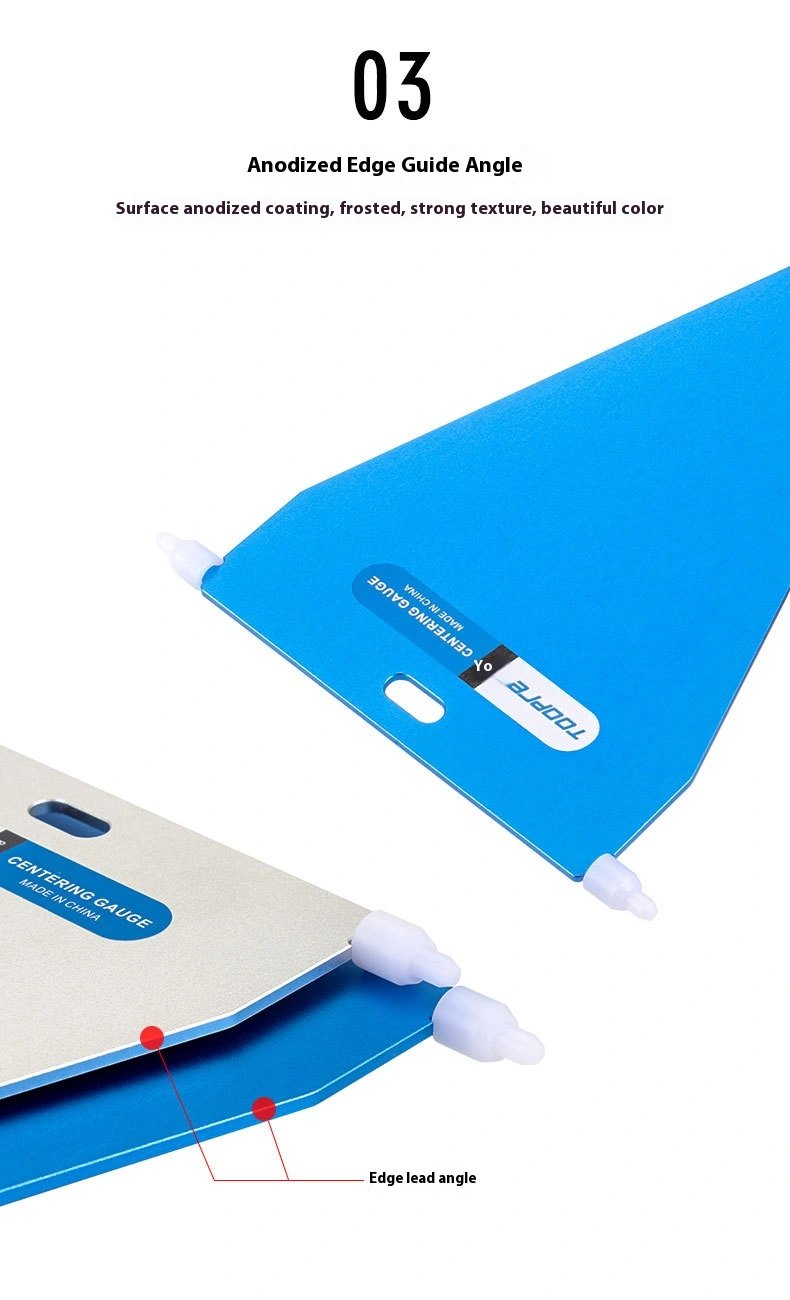

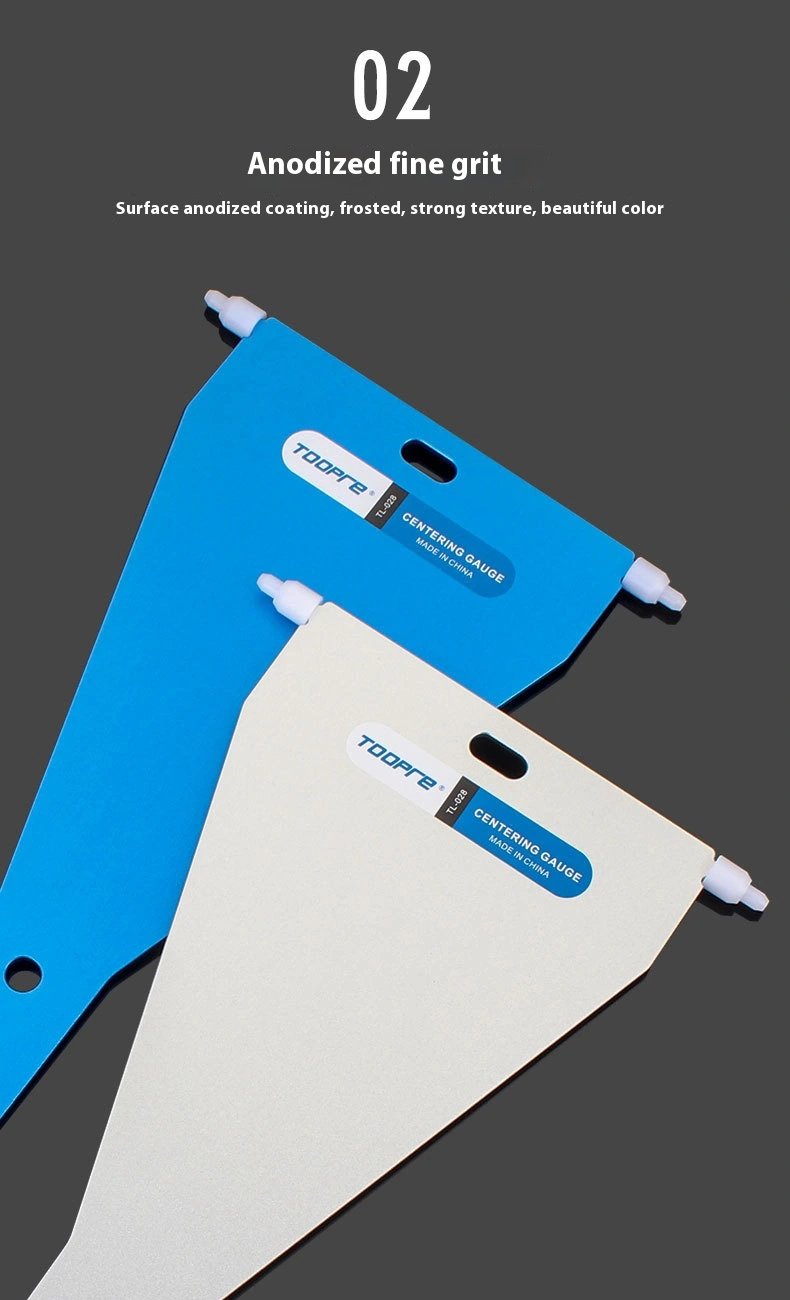

• Anodized Surface Treatment
  Corrosion-resistant finish with a clean and professional appearance.
• Frosted Texture Finish
  Fine-grained surface provides a comfortable touch and premium look.
• Lightweight & Easy to Use
  Simple structure, convenient operation, and easy storage.

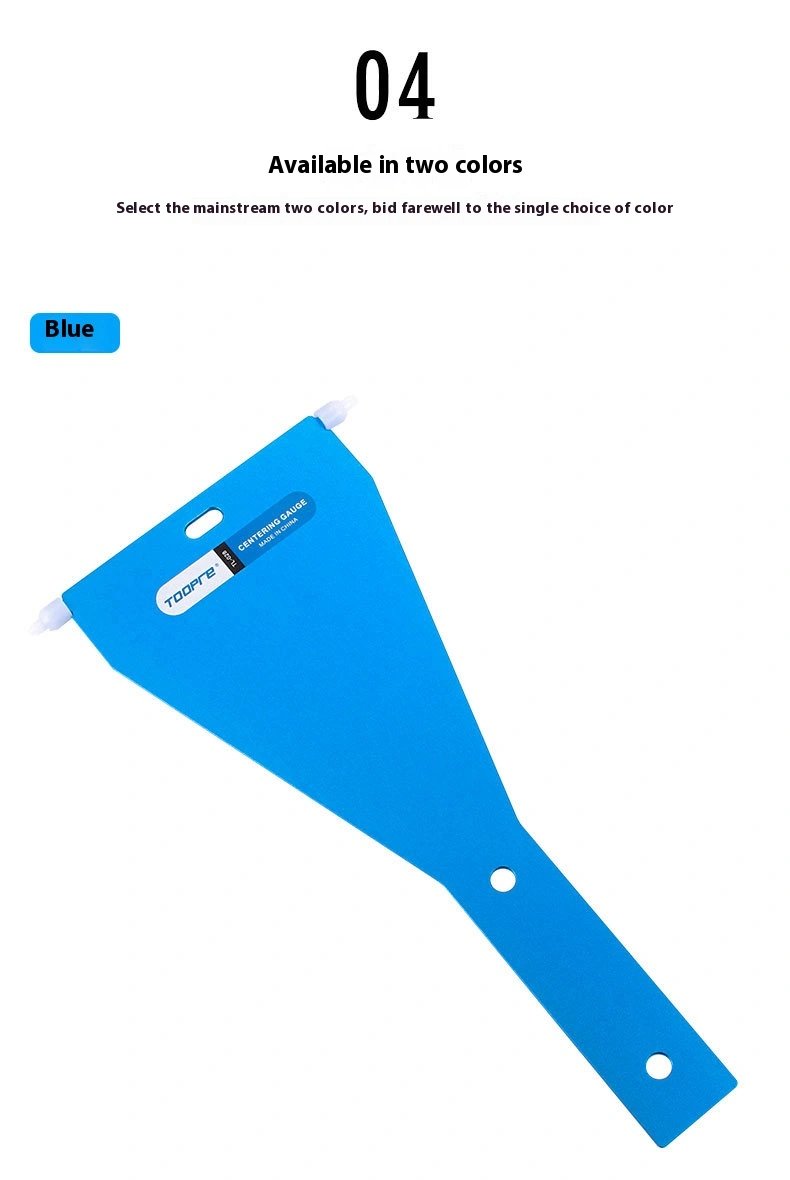

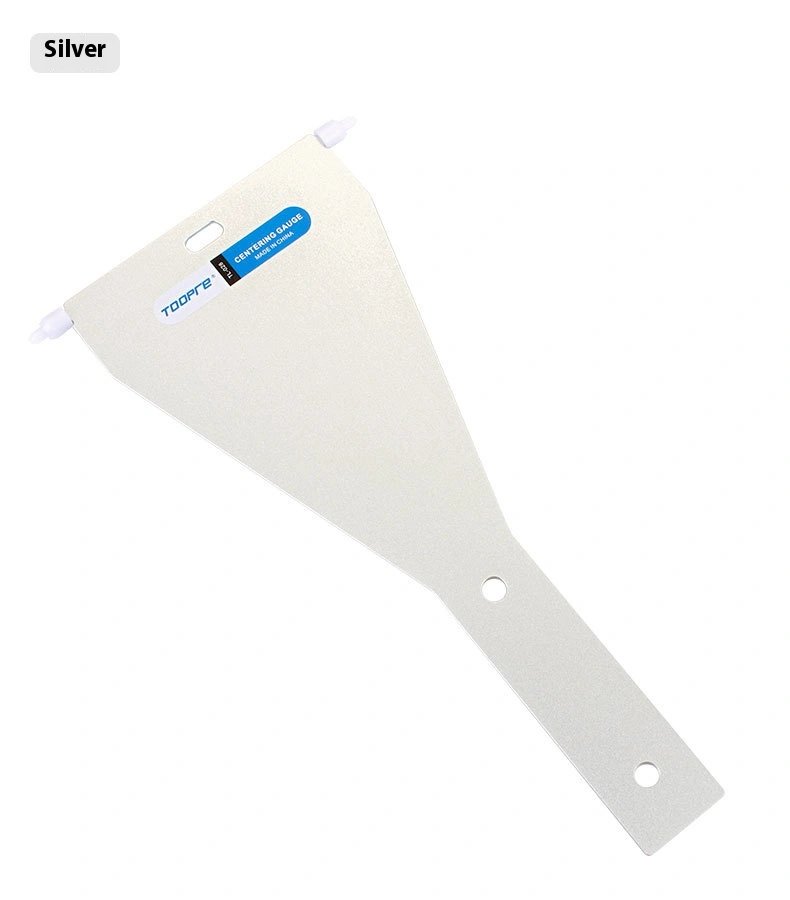

• Two Color Options
  Available in Blue and Silver.
• Complete Set Included
  Comes with centering gauge, Chinese/English manual, and two axle end caps.
• Authorized TOOPRE Product Available
  Brand authorization can be provided.

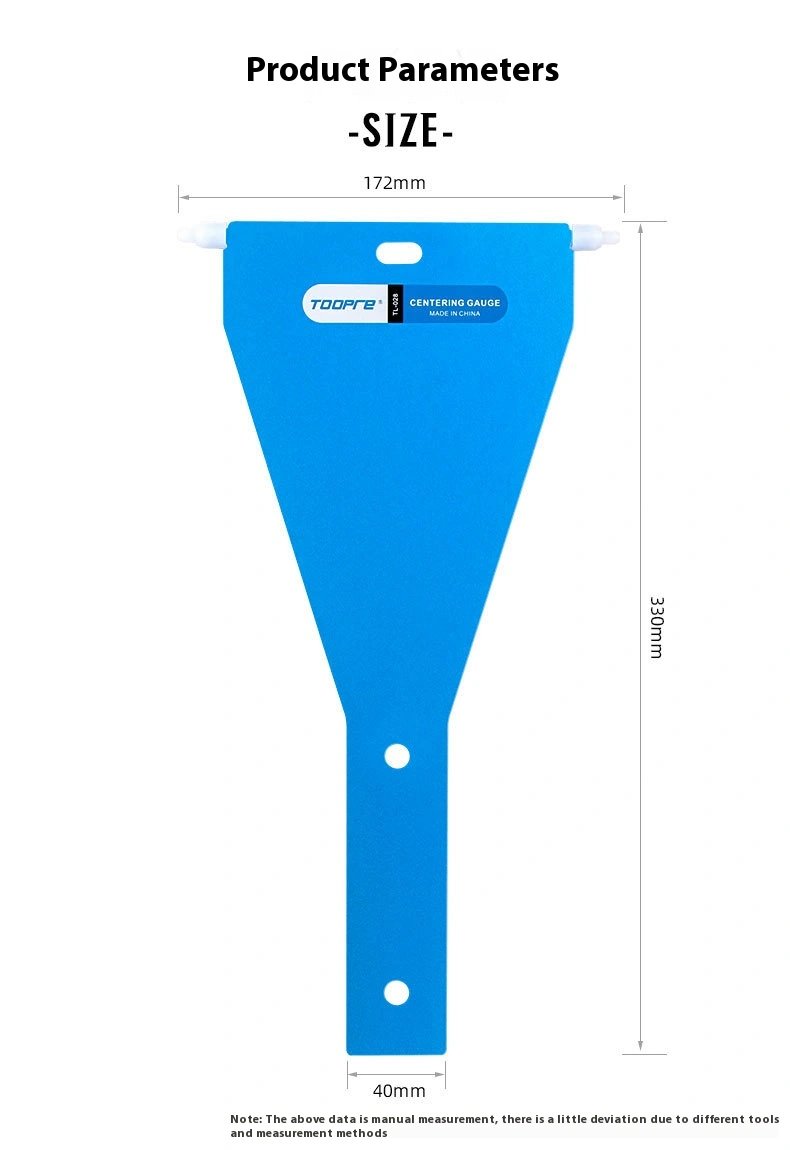

Specifications

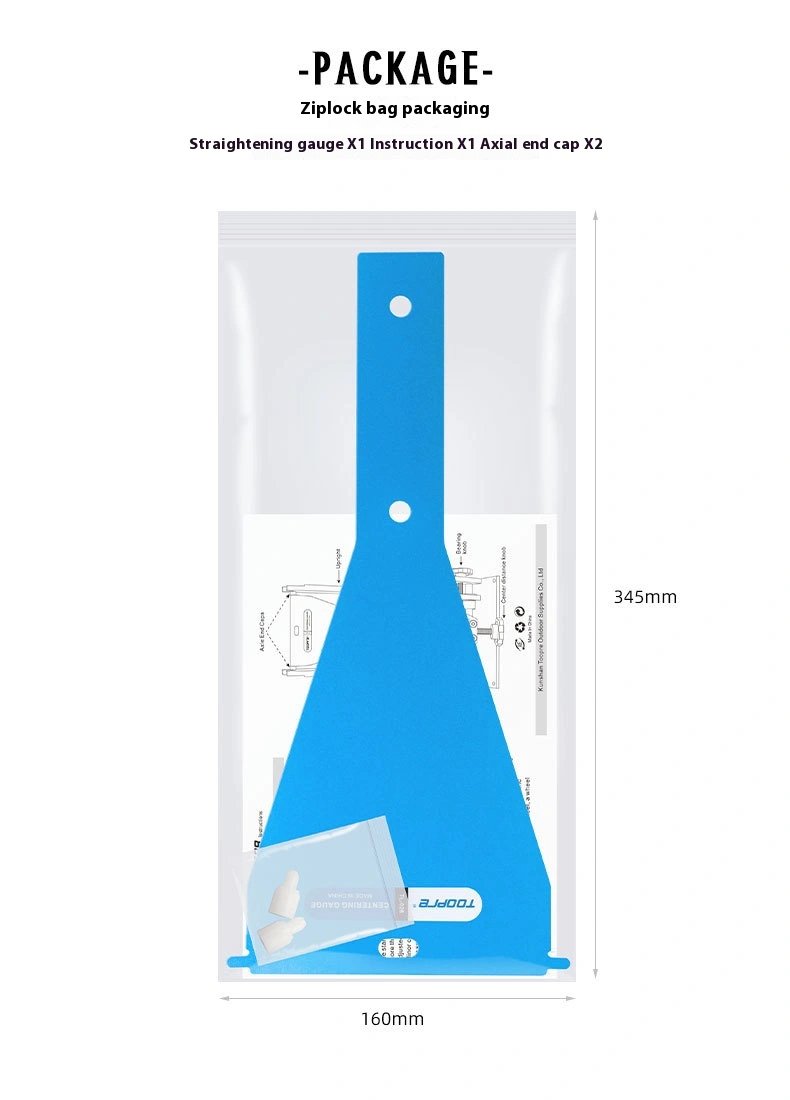

Package Includes

• 1 × TOOPRE TL-028 Centering Gauge
• 1 × Chinese/English Instruction Manual
• 2 × Axle End Caps

Usage Instructions

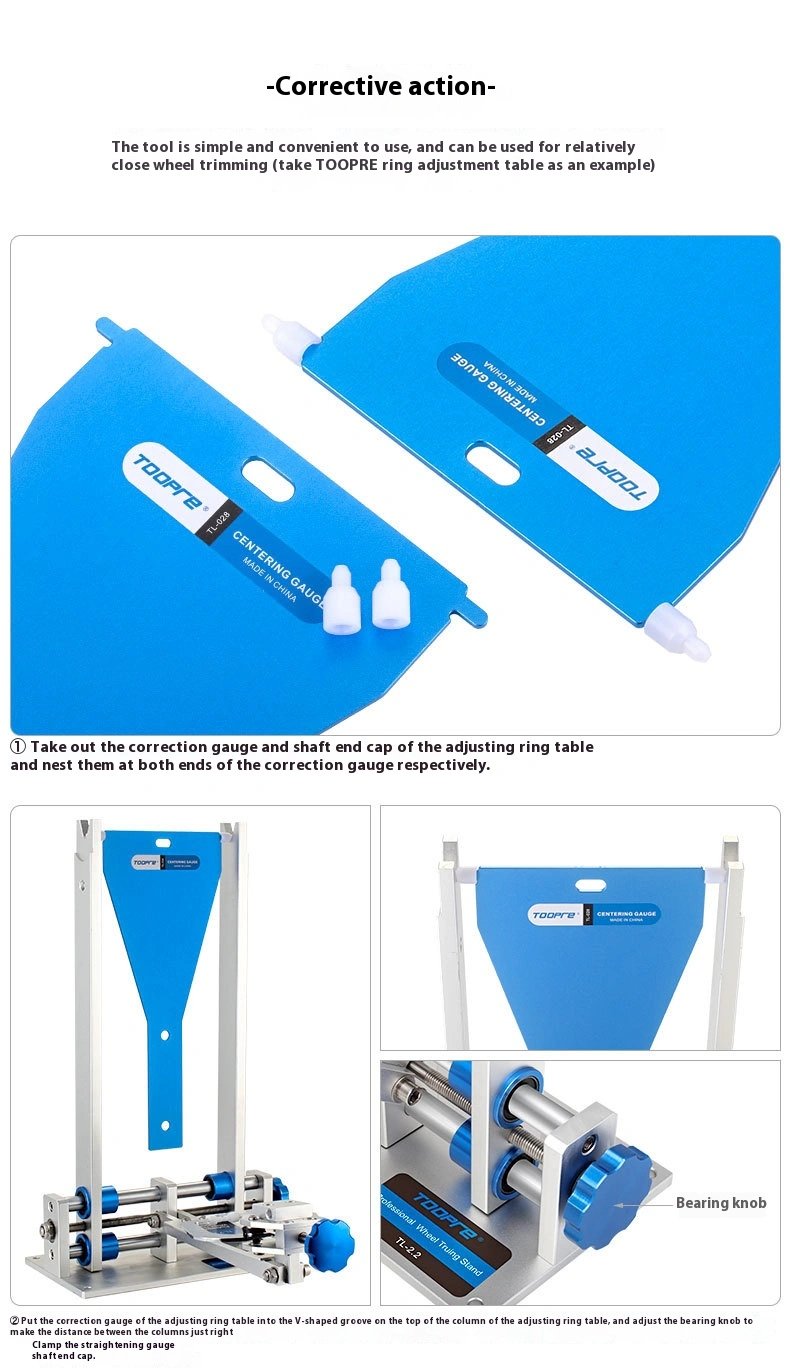

1. Remove the centering gauge and install the axle end caps on both ends of the gauge.
2. Place the centering gauge into the V-shaped grooves on the top of the truing stand columns.
3. Adjust the bearing knob so the gauge is clamped securely and positioned straight.

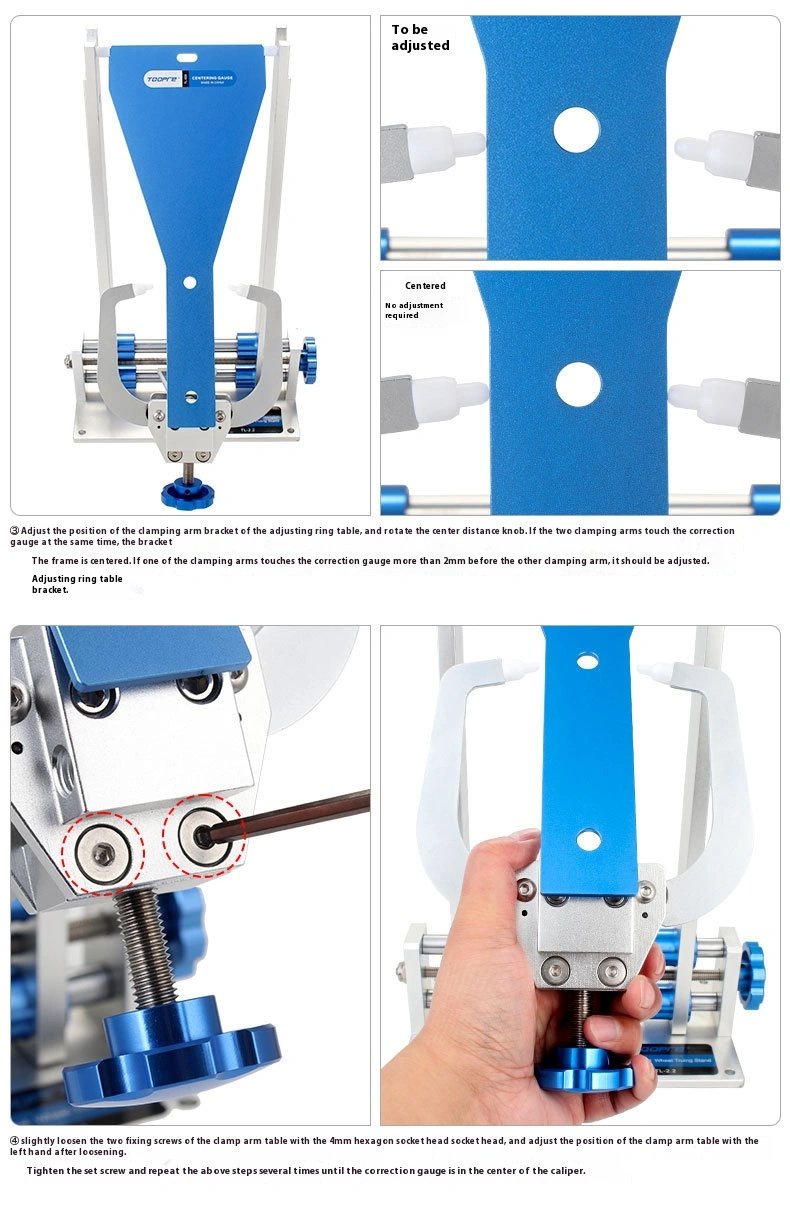

4. Rotate the center distance knob and observe whether both caliper arms touch the gauge at the same time.
5. If both arms touch the gauge simultaneously, the truing stand is centered.
6. If one arm contacts the gauge earlier than the other, adjust the arm bracket position.
7. Slightly loosen the fixing screws with a 4 mm hex wrench, adjust the arm bracket, then tighten the screws.
8. Repeat the process until the gauge is centered between the caliper arms.
